haio_cli_grammar.hpp File Reference

#include "haio_codec.hpp"
#include "haio_formats.hpp"
#include <array>
#include <boost/spirit/home/x3.hpp>
#include <optional>
#include <string>
#include <string_view>

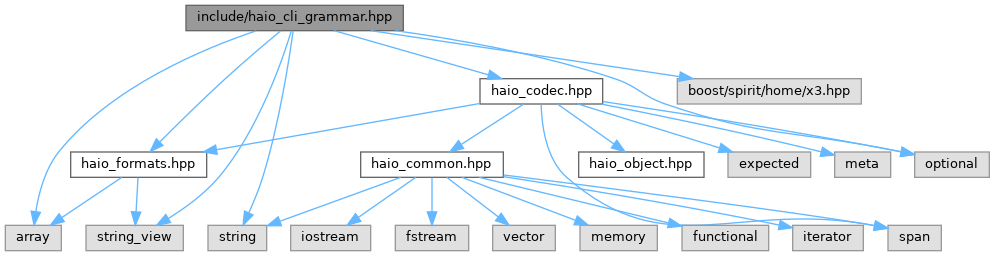

Include dependency graph for haio_cli_grammar.hpp:

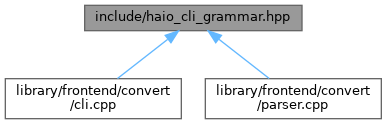

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Haio::Cli::Lexer::Rule
struct	Haio::Cli::Lexer::Note
struct	Haio::Cli::Lexer::Option
struct	Haio::Cli::Lexer::Word

Namespaces
namespace	Haio
namespace	Haio::Cli
namespace	Haio::Cli::Lexer
namespace	Haio::Cli::Lexer::Detail

Enumerations
enum class	Haio::Cli::Lexer::Opt {   Haio::Cli::Lexer::Size , Haio::Cli::Lexer::Crop , Haio::Cli::Lexer::CropRect , Haio::Cli::Lexer::Resize ,   Haio::Cli::Lexer::Radius , Haio::Cli::Lexer::Format , Haio::Cli::Lexer::PixFmt , Haio::Cli::Lexer::Filter ,   Haio::Cli::Lexer::Limit , Haio::Cli::Lexer::Palette , Haio::Cli::Lexer::Fx }

Functions
constexpr std::optional< Word >	Haio::Cli::Lexer::optionOf (std::string_view token)
consteval void	Haio::Cli::Lexer::Detail::alternative (std::string &out, size_t &lineStart, std::string_view piece)
consteval std::string_view	Haio::Cli::Lexer::Detail::quotedList (auto &&spellings)
consteval std::string_view	Haio::Cli::Lexer::Detail::expressionOf (const Option &option)
consteval auto	Haio::Cli::Lexer::Detail::optionRules ()
consteval std::string_view	Haio::Cli::Lexer::Detail::filterAlternation ()
consteval std::string_view	Haio::Cli::Lexer::Detail::formatAlternation ()
consteval std::string_view	Haio::Cli::Lexer::Detail::colorAlternation ()
template<size_t A, size_t B, size_t C>
consteval auto	Haio::Cli::Lexer::Detail::joined (const std::array< Rule, A > &a, const std::array< Rule, B > &b, const std::array< Rule, C > &c)

Variables
const auto	Haio::Cli::Lexer::paren = x3::string("\\‍(") | x3::string("\\‍)") | x3::string("(") | x3::string(")")
const auto	Haio::Cli::Lexer::singleQuoted = x3::lexeme['\'' >> *(x3::char_ - '\'') >> '\'']
const auto	Haio::Cli::Lexer::doubleQuoted = x3::lexeme['"' >> *(('\\' >> x3::char_) | (x3::char_ - '"')) >> '"']
const auto	Haio::Cli::Lexer::word = x3::lexeme[+(x3::char_ - x3::space - '"' - '\'' - '(' - ')')]
const auto	Haio::Cli::Lexer::arg = x3::raw[singleQuoted | doubleQuoted | paren | word]
const auto	Haio::Cli::Lexer::cmdline = x3::skip(x3::space)[*arg]
constexpr std::array	Haio::Cli::Lexer::ebnfRules
constexpr Option	Haio::Cli::Lexer::options []
constexpr std::string_view	Haio::Cli::Lexer::generatorKinds [] = {"xc", "canvas", "gradient", "radial-gradient"}
constexpr std::array	Haio::Cli::Lexer::Detail::structureRules
constexpr std::array	Haio::Cli::Lexer::Detail::leafRules
constexpr auto	Haio::Cli::Lexer::commandRules
constexpr std::array	Haio::Cli::Lexer::notes

---

Class Documentation

Haio::Cli::Lexer::Rule

struct Haio::Cli::Lexer::Rule

Definition at line 23 of file haio_cli_grammar.hpp.

Class Members
string_view	expression
string_view	name

Haio::Cli::Lexer::Note

struct Haio::Cli::Lexer::Note

Definition at line 28 of file haio_cli_grammar.hpp.

Class Members
string_view	text

Haio::Cli::Lexer::Option

struct Haio::Cli::Lexer::Option

every option the convert line takes, and how many words follow each.

it is a table because the same facts were written down three times: as an if in the parser, as a rule in the grammar this file documents, and as a line in the usage text. three copies of one list is three chances to disagree, and they did – "--size" was in the grammar and in the usage and in neither branch of the parser, and "--palette=cga" went looking for its value in the next word along, because the equals sign was only ever matched against the spelling the error message used.

the count is the part that matters. reading an option is the same work whatever it means: take the words the table says it takes, from after an equals sign or from one along, and hand them to whoever knows what they are for. that last step is the only thing particular to the option, and it is all the parser's switch is left doing.

Definition at line 75 of file haio_cli_grammar.hpp.

Class Members
int	args = 1	how many words follow it
bool	filter = true	whether it is one of the filters, which is what the grammar calls the options that may repeat between the source and the output. -size is not one: it belongs to the generator that has to follow it.
string_view	help
Opt	kind
bool	optional = false	... and whether it can do without them, which only -crop can
string_view	rule	the name this option's rule has in the grammar
array< string_view, 4 >	spellings	every spelling it answers to; the first is the one the usage text shows
string_view	takes	and the rule the words after it have to match

Haio::Cli::Lexer::Word

struct Haio::Cli::Lexer::Word

an option, the spelling it arrived as, and whatever an equals sign carried with it

Definition at line 150 of file haio_cli_grammar.hpp.

Collaboration diagram for Haio::Cli::Lexer::Word:

Class Members
bool	hasValue = false
const Option *	option = nullptr
string_view	spelling
string_view	value
